TESTER, EQUIVALENT TO A301-460-001, TO TEST EMERGENCY POWER SUPPLY, D717-0X-001

Our Part Number: TP913A/TP913B

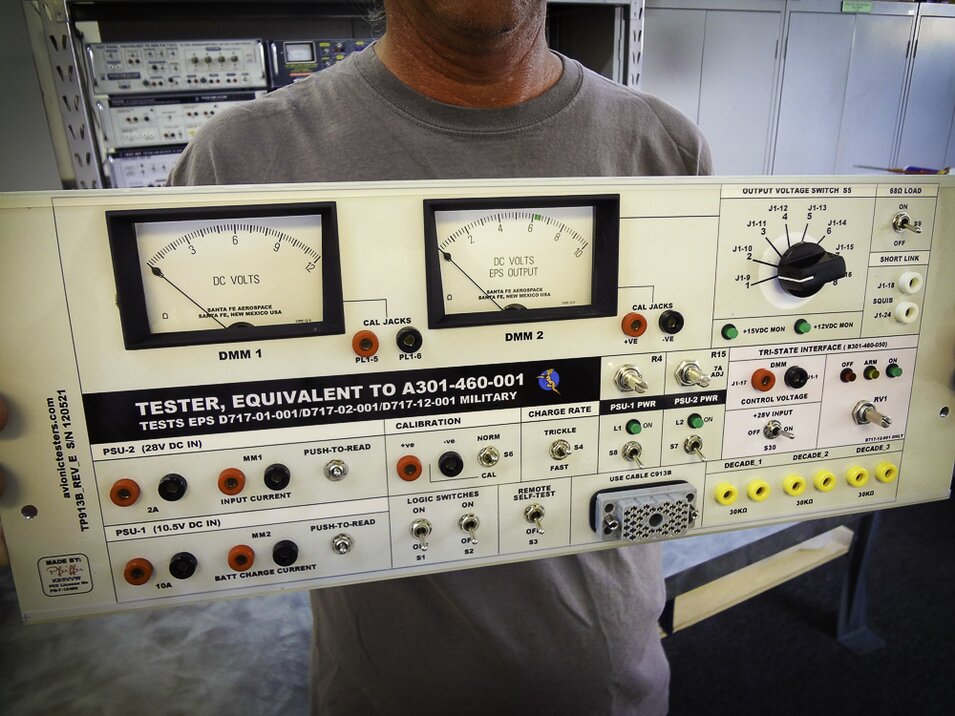

This TP913A test panel is equivalent to OEM P/N A301-460-001. It is used for bench testing, troubleshooting, repair and calibration of EMERGENCY POWER SUPPLY , P/N D717-01-001 and D717-02-001, as specified in ATA 24-35-01. LRU aircraft applicability is B737, B747, B757, B767, B777. Includes electrical cable C913 to UUT; a 28Ω/50Watt Load Resistor for Bonding Test; a 30KΩ Adapter which eliminates the necessity for a third decade box: and a SPARE PARTS KIT consisting of spare semiconductors for the ease of troubleshooting and repairing the PCB. Panel installed in 7.0" tall ABS box enclosure, as shown.

An upgrade to the above TP913A is our P/N TP913B, which preforms all of the functions of the TP913A, but adds an additional "Tri-State Interface Cable Box" circuit, equivalent to OEM P/N B301-460-050, incorporated for testing/overhauling of the D717-12-001, EMERGENCY POWER SUPPLY, as used on the BOEING 8I NEPTUNE military aircraft, as specified in ATA 24-35-02.

Optional "Certificate of Conformance" is available as industry accepted "proof" of equivalency for FAA/EASA inspector review, if needed. Request this at time of order. See example of "Certificate of Conformance" here:

Approximate Lead-Time:
90 days ARO

Panel Dimensions:
Height: 7.00"
Width: 19"
Shipping Weight = ≤ 11 lbs

Power Requirements:

28VDC@2A
10.5VDC@10A
